THE BMW X3: ENGINES & TECHNICAL DATA.

THE X3THE BMW X3: ENGINES & TECHNICAL DATA.

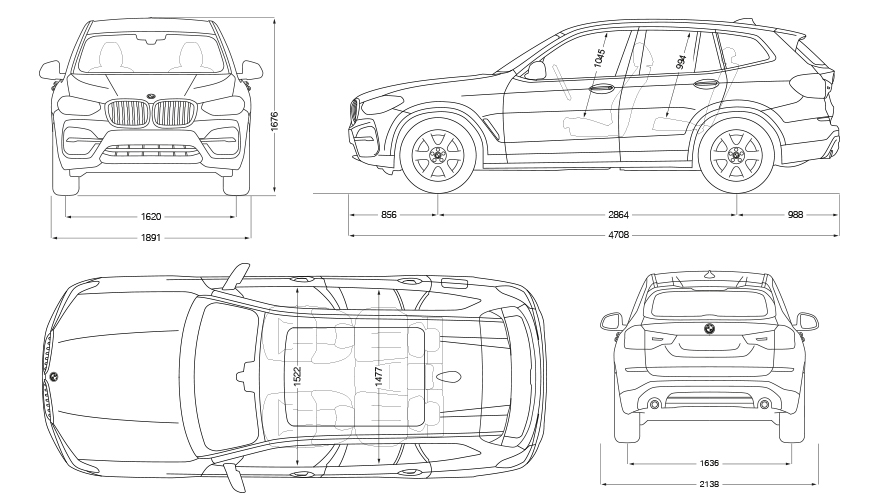

TECHNICAL DATA OF THE BMW X3.

Select model

Weight

Unladen weight EU in kg 1,875
Max. permissible weight in kg 2,410
Permitted load in kg 610
Permitted axle load front/rear in kg 1,140/1,390
Luggage capacity min. (seats up) in l 550
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400
Trailer load 12% (braked) in kg 2,400

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 215
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 8.4

Fuel consumption

Combined in l/100 km 8.4-7.6
CO2 combined emissions in g/km 192-172
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,885
Max. permissible weight in kg 2,450
Permitted load in kg 640
Permitted axle load front/rear in kg 1,160/1,400
Luggage capacity min. (seats up) in l 550
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400
Trailer load 12% (braked) in kg 2,400

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 180 (245)/5,000-6,500
Engine torque (Nm) at 1/min 350/1,560-4,800
Compression ratio : 1 10.2

Performance

Top speed in km/h 235
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 6.6

Fuel consumption

Combined in l/100 km 8.5-7.6
CO2 combined emissions in g/km 194-173
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,985
Max. permissible weight in kg 2,485
Permitted load in kg 575
Permitted axle load front/rear in kg 1,200/1,390
Luggage capacity min. (seats up) in l 550
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400
Trailer load 12% (braked) in kg 2,400

Engine

Cylinders/valves 6/4
Capacity in ccm 2,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 265 (360)/5,200-6,500
Engine torque (Nm) at 1/min 500/1,900-5,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.9

Fuel consumption

Combined in l/100 km 9.5-8.8
CO2 combined emissions in g/km 216-199
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 65

Wheels

Tyre dimensions front 245/45 R20 103 W XL
Tyre dimensions rear 275/40 R20 106 W XL
Wheel dimensions and material front 8 J x 20 inches, light-alloy
Wheel dimensions and material rear 9.5 J x 20 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,915
Max. permissible weight in kg 2,500
Permitted load in kg 660
Permitted axle load front/rear in kg 1,200/1,430
Luggage capacity min. (seats up) in l 550
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400
Trailer load 12% (braked) in kg 2,400

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 120-140 (163-190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,250 - 1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 205-213
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 9.0-7.9

Fuel consumption

Combined in l/100 km 6.5-5.8
CO2 combined emissions in g/km 171-151
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 2,010
Max. permissible weight in kg 2,550
Permitted load in kg 615
Permitted axle load front/rear in kg 1,220/1,415
Luggage capacity min. (seats up) in l 550
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400
Trailer load 12% (braked) in kg 2,400

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 183-210 (249-286)/4,000 - 3,250-4,400
Engine torque (Nm) at 1/min 650/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 235-245
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 5.9-5.7

Fuel consumption

Combined in l/100 km 7.0-6.2
CO2 combined emissions in g/km 183-162
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 2,080
Max. permissible weight in kg 2,580
Permitted load in kg 575
Permitted axle load front/rear in kg 1,245/1,450
Luggage capacity min. (seats up) in l 550
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,400
Trailer load 12% (braked) in kg 2,400

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 250 (340)/4,400
Engine torque (Nm) at 1/min 700/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.9

Fuel consumption

Combined in l/100 km 7.3-6.6
CO2 combined emissions in g/km 192-173
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 245/45 R20 103 W XL
Tyre dimensions rear 275/40 R20 106 W XL
Wheel dimensions and material front 8 J x 20 inches, light-alloy
Wheel dimensions and material rear 9.5 J x 20 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 2,065
Max. permissible weight in kg 2,600
Permitted load in kg 610
Permitted axle load front/rear in kg 1,200/1,515
Luggage capacity min. (seats up) in l 450
Luggage capacity max. (seats down) in l 1,500
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 120-135 (163-184)/3,900-6,500 - 5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 205-210
Top speed electrical in km/h 135
Acceleration 0–100 km/h in s 6.4-6.1

Fuel consumption

Combined in l/100 km 2.6-2.0
CO2 combined emissions in g/km 59-45
Electricity consumption, combined in kWh/100km 20.55-18.9
Tank capacity, approx. in l 50

Wheels

Tyre dimensions front 225/60 R18 104 W XL
Tyre dimensions rear 225/60 R18 104 W XL
Wheel dimensions and material front 7 J x 18 inches, light-alloy
Wheel dimensions and material rear 7 J x 18 inches, light-alloy

Range and charging

Electric range in km 42-50
Growth capacity of lithium–ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h N/A
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.7

Electric engine

Electric engine power kW (hp) -
Electric engine torque (Nm) -

Combined system power

Combined power kW (hp) 200-215 (272-292)
Combined torque Nm 420
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions of the BMW X3.

BMW X3 xDrive30e:
Fuel consumption in l/100 km (combined): 2.6-2.0
CO2 emissions in g/km (combined): 59–44

BMW X3 xDrive30i:
Fuel consumption in l/100 km (combined): 8.5-7.6
CO2 emissions in g/km (combined): 194–173

BMW X3 M40i:
Fuel consumption in l/100 km (combined): 9.5-8.7
CO2 emissions in g/km (combined): 217–199


Official data on fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP specifications take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more

Fuel consumption and CO2 emissions of the BMW X3.

BMW X3 xDrive30e[1]:
Fuel consumption in l/100 km (combined): 2.6–2.0
CO2 emissions in g/km (combined): 59–45

BMW X3 xDrive30i:
Fuel consumption in l/100 km (combined): 8.5–7.6
CO2 emissions in g/km (combined): 194–173

BMW X3 M40i:
Fuel consumption in l/100 km (combined): 9.5–8.8
CO2 emissions in g/km (combined): 216–200

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Read more

Fuel consumption and CO2 emissions of the BMW X3.

  • BMW X3 xDrive30e*:
    Fuel consumption in l/100 km (combined): 2.6–2.0
    CO2 emissions in g/km (combined): 59–45

    *At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

    BMW X3 xDrive30i:
    Fuel consumption in l/100 km (combined): 8.5–7.6
    CO2 emissions in g/km (combined): 194–173

    BMW X3 M40i:
    Fuel consumption in l/100 km (combined): 9.5–8.8
    CO2 emissions in g/km (combined): 216–200

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp
