THE NEW BMW 3 SERIES TOURING: ENGINES & TECHNICAL DATA

THE NEW 3THE NEW BMW 3 SERIES TOURING: ENGINES & TECHNICAL DATA

The key facts and figures for the new BMW 3 Series Touring at a glance:


  • Engines, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration

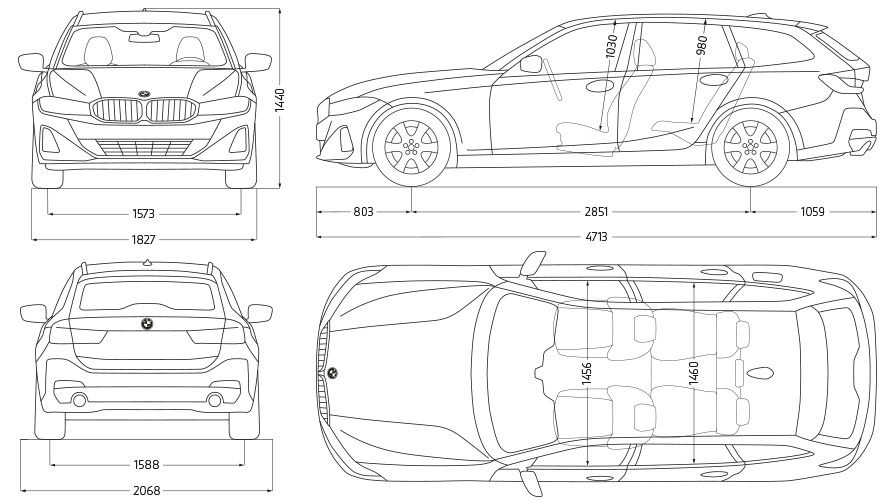

  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA OF THE NEW BMW 3 SERIES TOURING.

Weight

Unladen weight EU in kg 1,645
Max. permissible weight in kg 2,135
Permitted load in kg 565
Permitted axle load front/rear in kg 975/1,260
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,300
Trailer load 12% (braked) in kg 1,300

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 115 (156)/4,500-6,500
Engine torque (Nm) at 1/min 250/1,300-4,300
Compression ratio : 1 11.0

Performance

Top speed in km/h 220
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 8.7

Fuel consumption

Combined in l/100 km 7.5-6.7
CO2 combined emissions in g/km 171-152
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,660
Max. permissible weight in kg 2,180
Permitted load in kg 595
Permitted axle load front/rear in kg 975/1,285
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 230
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.6

Fuel consumption

Combined in l/100 km 7.5-6.6
CO2 combined emissions in g/km 170-151
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,675
Max. permissible weight in kg 2,195
Permitted load in kg 595
Permitted axle load front/rear in kg 985/1,285
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 180 (245)/4,500-6,500
Engine torque (Nm) at 1/min 400/1,600-4,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 6.1

Fuel consumption

Combined in l/100 km 7.7-6.8
CO2 combined emissions in g/km 176-155
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1.735
Max. permissible weight in kg 2.255
Permitted load in kg 595
Permitted axle load front/rear in kg 1,035/1,295
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 180 (245)/4,500-6,500
Engine torque (Nm) at 1/min 400/1,600-4,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 6.0

Fuel consumption

Combined in l/100 km 8.0-7.0
CO2 combined emissions in g/km 182-160
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,870
Max. permissible weight in kg 2,390
Permitted load in kg 595
Permitted axle load front/rear in kg 1,115/1,350
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 275 (374)/5,500-6,500
Engine torque (Nm) at 1/min 500/1,900-5,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.6

Fuel consumption

Combined in l/100 km 8.8-8.1
CO2 combined emissions in g/km 197-182
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/45 R18 95 Y XL
Tyre dimensions rear 255/40 R18 99 Y XL
Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,650 [1,705]
Max. permissible weight in kg 2,160 [2,215]
Permitted load in kg 585 [585]
Permitted axle load front/rear in kg 980/1,270 [1,015/1,285]
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750 [750]
Trailer load 8% (braked) in kg 1,600 [1,800]
Trailer load 12% (braked) in kg 1,600 [1,800]

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 110 (150)/4,000
Engine torque (Nm) at 1/min 320/1,500-3,000
Compression ratio : 1 16.5

Performance

Top speed in km/h 217 [215]
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 8.9 [8.7]

Fuel consumption

Combined in l/100 km 5.9-5.1 [5.5-4.8]
CO2 combined emissions in g/km 154-132 [145-125]
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,740-1,710
Max. permissible weight in kg 2,230
Permitted load in kg 595-565
Permitted axle load front/rear in kg 980-1,010/1,315
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 230
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.1

Fuel consumption

Combined in l/100 km 5.6-4.8
CO2 combined emissions in g/km 146-125
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,800-1,775
Max. permissible weight in kg 2,320-2,295
Permitted load in kg 595
Permitted axle load front/rear in kg 1,080-1,050/1,330
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 225
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.6-7.5

Fuel consumption

Combined in l/100 km 5.9-5.1
CO2 combined emissions in g/km 154-135
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7,5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7,5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,845
Max. permissible weight in kg 2,345
Permitted load in kg 575
Permitted axle load front/rear in kg 1,110/1,345
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 210 (286)/4,000
Engine torque (Nm) at 1/min 650/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 5.5

Fuel consumption

Combined in l/100 km 5.9-5.2
CO2 combined emissions in g/km 154-136
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm

Weight

Unladen weight EU in kg 1,900
Max. permissible weight in kg 2,400
Permitted load in kg 575
Permitted axle load front/rear in kg 1,160/1,340
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 210 (286)/4,000
Engine torque (Nm) at 1/min 650/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 5.2

Fuel consumption

Combined in l/100 km 6.2-5.5
CO2 combined emissions in g/km 163-144
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1.945
Max. permissible weight in kg 2,430
Permitted load in kg 560
Permitted axle load front/rear in kg 1,160/1,360
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,510
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 250 (340)/4,400
Engine torque (Nm) at 1/min 700/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.7

Fuel consumption

Combined in l/100 km 6.6-6.0
CO2 combined emissions in g/km 177-160
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/45 R18 95 Y XL
Tyre dimensions rear 255/40 R18 99 Y XL
Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,900
Max. permissible weight in kg 2,350
Permitted load in kg 525
Permitted axle load front/rear in kg 1,050/1,380
Luggage capacity min. (seats up) in l 410
Luggage capacity max. (seats down) in l 1,420
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 120 (163)/3,900-5,000
Engine torque (Nm) at 1/min 300/1,350-3,700
Compression ratio : 1 11.0

Performance

Top speed in km/h 220
Top speed electrical in km/h 140
Acceleration 0–100 km/h in s 7.9

Fuel consumption

Combined in l/100 km 1.9-1.4
CO2 combined emissions in g/km 44-32
Electricity consumption, combined in kWh/100km 18.6-16.7
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km 50-59
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h N/A
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.6

Electric engine

Electric engine power kW (PS) at 1/min 83 (113)/3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (PS) 150 (204)
Combined torque Nm 350

Weight

Unladen weight EU in kg 1,955
Max. permissible weight in kg 2,405
Permitted load in kg 525
Permitted axle load front/rear in kg 1,100/1,309
Luggage capacity min. (seats up) in l 410
Luggage capacity max. (seats down) in l 1,420
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 120 (163)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-3,700
Compression ratio : 1 11.0

Performance

Top speed in km/h 219
Top speed electrical in km/h 140
Acceleration 0–100 km/h in s 8.2

Fuel consumption

Combined in l/100 km 2.2-1.5
CO2 combined emissions in g/km 49-35
Electricity consumption, combined in kWh/100km 19.5-17.3
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km 46-57
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h N/A
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.6

Electric engine

Electric engine power kW (PS) at 1/min 83 (113)/3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (PS) 150 (204)
Combined torque Nm 350

Weight

Unladen weight EU in kg 1,900
Max. permissible weight in kg 2,350
Permitted load in kg 525
Permitted axle load front/rear in kg 1,050/1,380
Luggage capacity min. (seats up) in l 410
Luggage capacity max. (seats down) in l 1,420
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 230
Top speed electrical in km/h 140
Acceleration 0–100 km/h in s 5.9

Fuel consumption

Combined in l/100 km 1.9-1.4
CO2 combined emissions in g/km 42-31
Electricity consumption, combined in kWh/100km 18.3-16.2
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km 52-61
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h N/A
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.6

Electric engine

Electric engine power kW (PS) at 1/min 83 (113)/3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (PS) 215 (292)
Combined torque Nm 420

Weight

Unladen weight EU in kg 1,955
Max. permissible weight in kg 2,405
Permitted load in kg 525
Permitted axle load front/rear in kg 1,100/1,390
Luggage capacity min. (seats up) in l 410
Luggage capacity max. (seats down) in l 1,420
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 225
Top speed electrical in km/h 140
Acceleration 0–100 km/h in s 5.9

Fuel consumption

Combined in l/100 km 2.1-1.6
CO2 combined emissions in g/km 48-35
Electricity consumption, combined in kWh/100km 19.3-17.3
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km 48-57
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h N/A
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.6

Electric engine

Electric engine power kW (PS) at 1/min 83 (113)/3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (PS) 215 (292)
Combined torque Nm 420
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions.

  • BMW 330e sDrive Touring:
    Fuel consumption in l/100 km (combined): 1.9–1.4
    CO2 emissions in g/km (combined): 42–31

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
