THE NEW BMW 3 SERIES TOURING M AUTOMOBILES: ENGINES & TECHNICAL DATA.
Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the new BMW 3 Series Touring M Automobiles.
ENGINES AND TECHNICAL DATA OF THE NEW BMW 3 SERIES TOURING M AUTOMOBILES.
- BMW M3 Competition Touring (1)
- BMW M340i xDrive Touring
- BMW M340d xDrive Touring
No search result found. Please try another input

Unladen weight EU in kg | 1,940 |
---|---|
Max. permissible weight in kg | 2,370 |
Permitted load in kg | 505 |
Permitted axle load front/rear in kg | 1,125/1,275 |
Luggage capacity min. (seats up) in l | 500 |
Luggage capacity max. (seats down) in l | 1,510 |
Trailer load (unbraked) in kg | - |
Trailer load 8% (braked) in kg | - |
Trailer load 12% (braked) in kg | - |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,993 |
Stroke/bore in mm | 90/84 |
Engine power in kW (hp) at 1/min | 375 (510)/5,510-7,200 |
Engine torque (Nm) at 1/min | 650/2,750-5,500 |
Compression ratio : 1 | 9.3 |
Top speed in km/h | 250 (280) |
---|---|
Acceleration 0–100 km/h in s | 3.6 |
Combined in l/100 km | 10.3 |
---|---|
CO2 combined emissions in g/km | 235 |
Tank capacity, approx. in l | 59 |
Tyre dimensions front | 275/35-19 |
---|---|
Tyre dimensions rear | 285/30-20 |
Wheel dimensions and material front | 9.5 J x 19 inches, light-alloy |
Wheel dimensions and material rear | 10.5 J x 20 inches, light-alloy |
Unladen weight EU in kg | 1,870 |
---|---|
Max. permissible weight in kg | 2,390 |
Permitted load in kg | 595 |
Permitted axle load front/rear in kg | 1,115/1,350 |
Luggage capacity min. (seats up) in l | 500 |
Luggage capacity max. (seats down) in l | 1,510 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 1,800 |
Trailer load 12% (braked) in kg | 1,800 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 275 (374)/5,500-6,500 |
Engine torque (Nm) at 1/min | 500/1,900-5,000 |
Compression ratio : 1 | 10.2 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.6 |
Combined in l/100 km | 8.8-8.1 |
---|---|
CO2 combined emissions in g/km | 197-182 |
Tank capacity, approx. in l | 59 |
Tyre dimensions front | 225/45 R18 95 Y XL |
---|---|
Tyre dimensions rear | 255/40 R18 99 Y XL |
Wheel dimensions and material front | 7.5 J x 18 inches, light-alloy |
Wheel dimensions and material rear | 8.5 J x 18 inches, light-alloy |
Unladen weight EU in kg | 1.945 |
---|---|
Max. permissible weight in kg | 2,430 |
Permitted load in kg | 560 |
Permitted axle load front/rear in kg | 1,160/1,360 |
Luggage capacity min. (seats up) in l | 500 |
Luggage capacity max. (seats down) in l | 1,510 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 1,800 |
Trailer load 12% (braked) in kg | 1,800 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,993 |
Stroke/bore in mm | 90.0/84.0 |
Engine power in kW (hp) at 1/min | 250 (340)/4,400 |
Engine torque (Nm) at 1/min | 700/1,750-2,250 |
Compression ratio : 1 | 16.5 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.7 |
Combined in l/100 km | 6.6-6.0 |
---|---|
CO2 combined emissions in g/km | 177-160 |
Tank capacity, approx. in l | 59 |
Tyre dimensions front | 225/45 R18 95 Y XL |
---|---|
Tyre dimensions rear | 255/40 R18 99 Y XL |
Wheel dimensions and material front | 7.5 J x 18 inches, light-alloy |
Wheel dimensions and material rear | 8.5 J x 18 inches, light-alloy |
Fuel consumption and CO2 emissions.
BMW M3 Competition Touring:
Fuel consumption in l/100 km (combined): 10.3
CO2 emissions in g/km (combined): 235

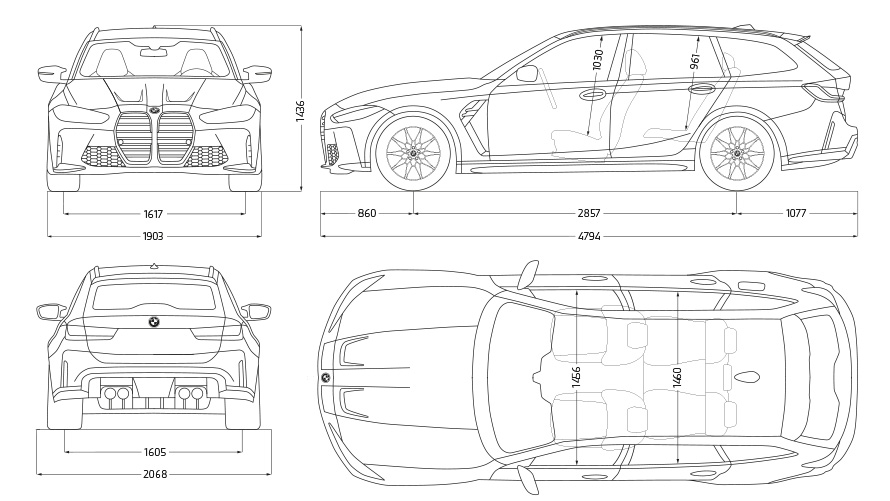

The dimensions in the technical drawing are preliminary values.
Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp
Fuel consumption and CO2 emissions.
BMW M3 Competition Touring:
Fuel consumption, combined WLTP in l/100 km: 10.3
CO2 emissions, combined WLTP in g/km: 235Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp.
The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission. Values in square brackets apply to vehicles with automatic transmission.(1) Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.
(2) Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp
(3) The charging performance depends on the state of charge, ambient temperature, individual driving profile and use of auxiliary consumers. The ranges shown are based on the WLTP best case. The charging times apply to ambient temperatures of 23 degrees Celsius after a preceding drive and may differ depending on the usage behaviour.
(4) The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.
(5) Provisional figures; any missing figures were unavailable at the time of publication.
