BMW M5 Competition F90 LCI Facelift 2020 BMW Individual Imola Red three-quarter front view standing

THE M5

BMW M

BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

THE M5BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

The key facts and figures for the BMW 5 Series Sedan M Automobiles at a glance: find out all about engines, consumption, CO2 emissions and dimensions of the various BMW M5 models. Compare impressive performance data such as displacement, hp, Nm and acceleration – and discover which of these three exceptional sports sedans suits you best.

Read more

ENGINES AND TECHNICAL DATA OF THE BMW 5 SERIES SEDAN M AUTOMOBILES.

Select model

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 460 (625)
Torque in Nm 750
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 8
Displacement in cm³ 4395
Nominal power in kW (hp)/1/min 460 (625)/6000
Nominal torque in Nm/1/min 750/1800-5860

Performance

Acceleration 0–100 km/h in s 3.3
Maximum speed in km/h 250

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 11.3-11.1
CO2 emissions, combined WLTP in g/km 259-253

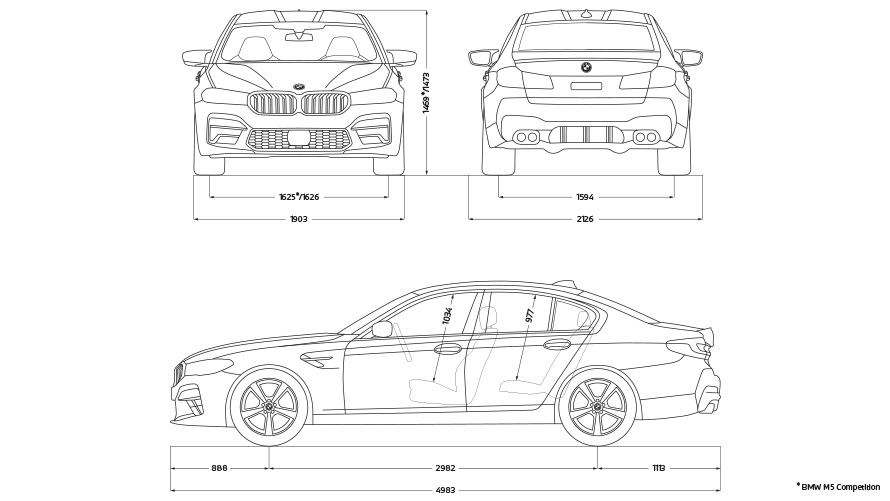

Dimensions/weights

Length/width/height in mm 4983/1903/1469
Wheelbase in mm 2982
Curb weight in kg [3] 1970
Luggage capacity in l 530
Fuel capacity in l 68
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/90

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 441 (600)
Torque in Nm 750
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 8
Displacement in cm³ 4395
Nominal power in kW (hp)/1/min 441 (600)/6000
Nominal torque in Nm/1/min 750/1800-5600

Performance

Acceleration 0–100 km/h in s 3.4
Maximum speed in km/h 250

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 11.3-11.1
CO2 emissions, combined WLTP in g/km 259-253

Dimensions/weights

Length/width/height in mm 4983/1903/1473
Wheelbase in mm 2982
Curb weight in kg [3] 1970
Luggage capacity in l 530
Fuel capacity in l 68
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/90

Total Powertrain [1]

Powertrain type Petrol
Power in kW (hp) 390 (530)
Torque in Nm 750
Transmission 8-speed, automatic
Drivetrain All-wheel drive

TwinPower Turbo internal combustion engine [1]

Cylinders 8
Displacement in cm³ 4395
Nominal power in kW (hp)/1/min 390 (530)/5500-6000
Nominal torque in Nm/1/min 750/1800-4600

Performance

Acceleration 0–100 km/h in s 3.8
Maximum speed in km/h 250

Fuel economy/CO2 emissions [1][2]

Fuel consumption, combined in l/100 km 11.0-10.3
CO2 emissions, combined WLTP in g/km 250-235

Dimensions/weights

Length/width/height in mm 4972/1868/1467
Wheelbase in mm 2975
Curb weight in kg [3] 1990
Luggage capacity in l 530
Fuel capacity in l 68
Optionally delivered with support for trailer load, braked, up to 12%/towbar download in kg 2000/90
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW M5 CS:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 258–253

BMW M5 Competition:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 259–254

BMW M5:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 259–254

BMW M550i xDrive Sedan:
Fuel consumption in l/100 km (combined): 10.7–10.4
CO2 emissions in g/km (combined): 243–238

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.


The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission. Values in square brackets apply to vehicles with automatic transmission.


[1] Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.


[2] Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. In addition, NEDC values are deleted from the certificates of conformity as of 1 January 2023 by EC regulation 2022/195.



For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp




Further information about fuel consumption and official model-specific CO2 emissions of new passenger cars can be found in the "Guideline for fuel consumption, CO2 emissions and electric power consumption for new passenger cars", available free of charge at all points of sale, at the Deutsche Automobil Treuhand GmbH (DAT), Hellmuth-Hirth-Str. 1, 73760 Ostfildern-Scharnhausen, Germany, and under https://www.dat.de/co2/.



[3] The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.
