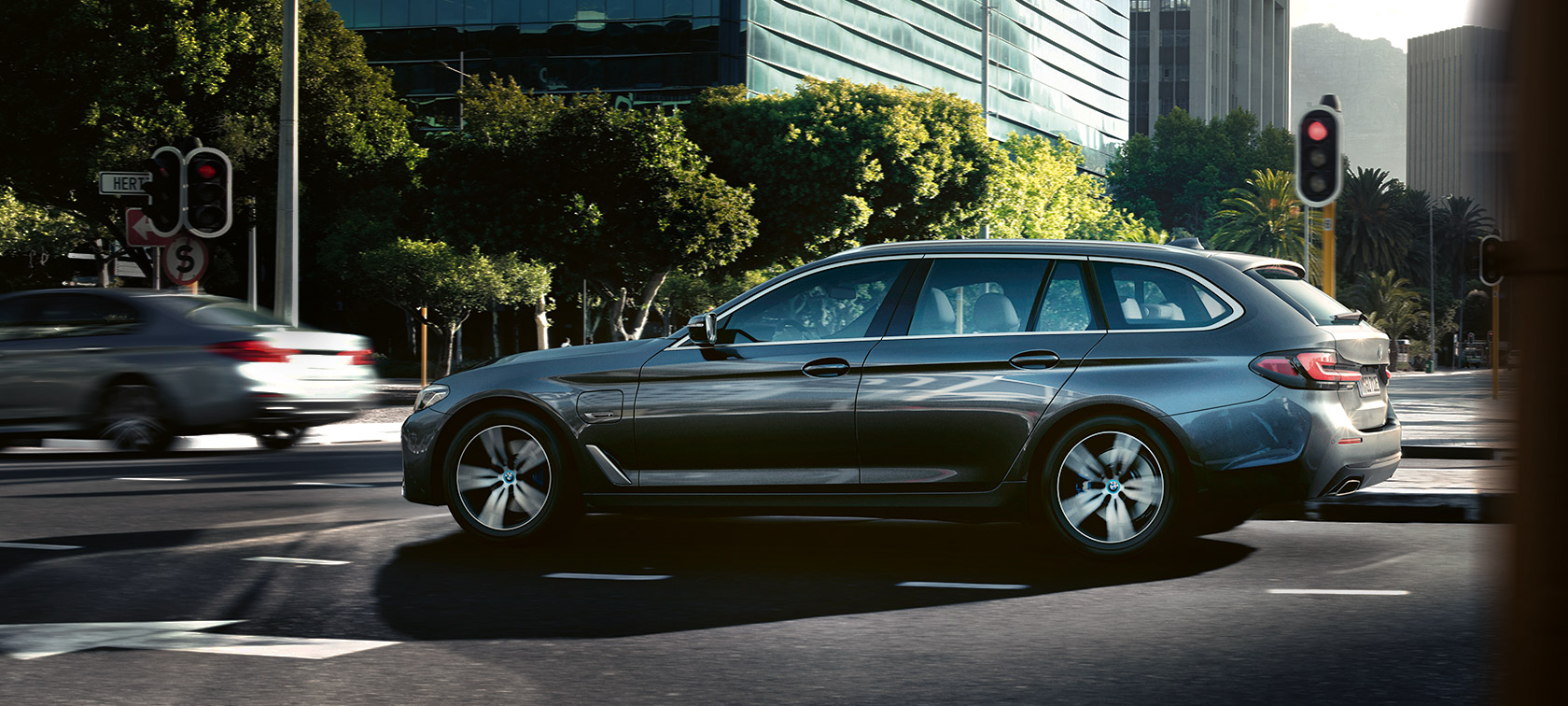

BMW 530e Touring G31 LCI in Sophisto grey metallic, standing in front o a building

THE 5

BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Touring.

Read more
THE 5BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA

BMW 5 SERIES TOURING: TECHNICAL DATA.

Weight

Unladen weight EU in kg 1,790
Max. permissible weight in kg 2,410
Permitted load in kg 695
Permitted axle load front/rear in kg 1,100/1,410
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 120-135 (163-184)/5,000-6,500
Engine torque (Nm) at 1/min 290/1,350-4,250
Compression ratio : 1 11.0

Performance

Top speed in km/h 217-225
Acceleration 0–100 km/h in s 9.0-8.3
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 7.5-6.6
CO2 combined emissions in g/km 171-150
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,805
Max. permissible weight in kg 2,425
Permitted load in kg 695
Permitted axle load front/rear in kg 1,120/1,430
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 185 (252)/5,200-6,500
Engine torque (Nm) at 1/min 350/1,450-4,800
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 6.7
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 7.4-6.5
CO2 combined emissions in g/km 169-148
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,865
Max. permissible weight in kg 2,490
Permitted load in kg 700
Permitted axle load front/rear in kg 1,170/1,440
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 185 (252)/5,200-6,500
Engine torque (Nm) at 1/min 350/1,450-4,800
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 6.3
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 7.9-7.0
CO2 combined emissions in g/km 180-160
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,925
Max. permissible weight in kg 2,535
Permitted load in kg 685
Permitted axle load front/rear in kg 1,240/1,450
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 245 (333)/5,500-6,250
Engine torque (Nm) at 1/min 450/1,600-4,800
Compression ratio : 1 11.0

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 5.2
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 8.5-7.7
CO2 combined emissions in g/km 195-177
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,830
Max. permissible weight in kg 2,450
Permitted load in kg 695
Permitted axle load front/rear in kg 1,110/1,455
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 100-110 (136-150)/4,000
Engine torque (Nm) at 1/min 350/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 204-212
Acceleration 0–100 km/h in s 9.8-9.2
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 5.7-5.0
CO2 combined emissions in g/km 149-132
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 66

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,855
Max. permissible weight in kg 2,470
Permitted load in kg 690
Permitted axle load front/rear in kg 1,125/1,455
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 120-140 (163-190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 218-225
Acceleration 0–100 km/h in s 8.6-7.6
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 5,8-5,0
CO2 combined emissions in g/km 151-132
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 66

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,915
Max. permissible weight in kg 2,530
Permitted load in kg 690
Permitted axle load front/rear in kg 1,180/1,455
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 140 (190)/4,000
Engine torque (Nm) at 1/min 400/1,750-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 222
Acceleration 0–100 km/h in s 7.6
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.0-5.3
CO2 combined emissions in g/km 157-138
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 66

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,940
Max. permissible weight in kg 2,550
Permitted load in kg 685
Permitted axle load front/rear in kg 1,210/1,455
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 183-210 (249-286)/3,250-4,400
Engine torque (Nm) at 1/min 650/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 5.9-5.7
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.0-5.4
CO2 combined emissions in g/km 158-141
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 66

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm

Weight

Unladen weight EU in kg 2,000
Max. permissible weight in kg 2,610
Permitted load in kg 685
Permitted axle load front/rear in kg 1,260/1,455
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 183-210 (249-286)/3,250-4,400
Engine torque (Nm) at 1/min 650/1,500-2,500
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 5.8-5.6
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.5-5.8
CO2 combined emissions in g/km 169-151
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 66

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 2,000
Max. permissible weight in kg 2,615
Permitted load in kg 690
Permitted axle load front/rear in kg 1,270/1,455
Luggage capacity min. (seats up or roof down) in l 560
Luggage capacity max. (seats down or roof up) in l 1,700
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 250 (340)/4,400
Engine torque (Nm) at 1/min 700/1,750-2,250
Compression ratio : 1 16.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 4.8
Top speed electrical in km/h -

Fuel consumption

Combined in l/100 km 6.6-5.8
CO2 combined emissions in g/km 172-153
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 66

Wheels

Tyre dimensions front 225/55 R17 101 Y XL
Tyre dimensions rear 225/55 R17 101 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h -

Electric engine

Electric engine power kW (hp) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (hp) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,975
Max. permissible weight in kg 2,550
Permitted load in kg 650
Permitted axle load front/rear in kg 1,090/1,540
Luggage capacity min. (seats up or roof down) in l 430
Luggage capacity max. (seats down or roof up) in l 1,560
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,700
Trailer load 12% (braked) in kg 1,700

Engine

Cylinders/valves 4/4
Capacity in ccm 1.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 225
Acceleration 0–100 km/h in s 6.1
Top speed electrical in km/h 140

Fuel consumption

Combined in l/100 km 1.9-1.5
CO2 combined emissions in g/km 44-35
Electricity consumption, combined in kWh/100km 18.6-17.1
Tank capacity, approx. in l 46

Wheels

Tyre dimensions front 245/45 R18 100 Y XL
Tyre dimensions rear 245/45 R18 100 Y XL
Wheel dimensions and material front 8 J x 18 inches, light-alloy
Wheel dimensions and material rear 8 J x 18 inches, light-alloy

Range and charging

Electric range in km 51-57
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.6
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3.6

Electric engine

Electric engine power kW (hp) at 1/min 80 (109)/3,140
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (hp) 215 (292)
Combined torque Nm 420

Weight

Unladen weight EU in kg 2,035
Max. permissible weight in kg 2,610
Permitted load in kg 650
Permitted axle load front/rear in kg 1,140/1,550
Luggage capacity min. (seats up or roof down) in l 430
Luggage capacity max. (seats down or roof up) in l 1,560
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 120-135 (163-184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 217-225
Acceleration 0–100 km/h in s 6.6-6.1
Top speed electrical in km/h 140

Fuel consumption

Combined in l/100 km 2.3-1.8
CO2 combined emissions in g/km 52-41
Electricity consumption, combined in kWh/100km 20.1-18.5
Tank capacity, approx. in l 46

Wheels

Tyre dimensions front 245/45 R18 100 Y XL
Tyre dimensions rear 245/45 R18 100 Y XL
Wheel dimensions and material front 8 J x 18 inches, light-alloy
Wheel dimensions and material rear 8 J x 18 inches, light-alloy

Range and charging

Electric range in km 47-53
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.6
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3.6

Electric engine

Electric engine power kW (hp) at 1/min 80 (109)/3,140
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (hp) 200-215 (272-292)
Combined torque Nm 420
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions.

  • BMW 530e Touring:
    Fuel consumption in l/100 km (combined): 1,9–1,5
    CO2 emissions in g/km (combined): 24,8–22,8

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
