THE X1

BMW X1: ENGINES & TECHNICAL DATA.

The key facts and figures for the new BMW X1 at a glance:


  • Engine, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration

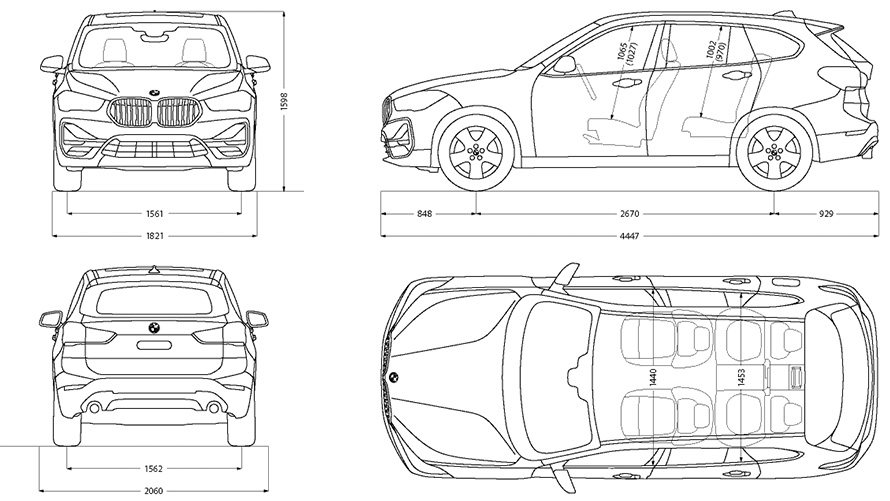

  • Weight, dimensions, wheel and tyre sizes
THE X1 BMW X1: ENGINES & TECHNICAL DATA.

The key facts and figures for the new BMW X1 at a glance:


  • Engine, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration
  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA.

Weight

Unladen weight EU in kg 1,575
Max. permissible weight in kg 2,076
Permitted load in kg 575
Permitted axle load front/rear in kg 1,090/1,050
Luggage capacity min. (seats up) in l 540
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,700
Trailer load 12% (braked) in kg 1,700

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm 94.6/82.0
Nominal power in kW (hp) at 1/min 100 (136)/4,400 - 6,500
Nominal torque (Nm) at 1/min 230/1,500 - 4,000
Compression ratio : 1 11.1

Performance

Acceleration 0–100 km/h in s 9.2
Top speed in km/h 208
Electrical engine top speed in km/h -

Fuel consumption

Fuel consumption, combined in l/100 km 7.0-6.3
CO2 emissions, combined in g/km 158-143
Energy consumption, combined in kWh/100km (WLTP) -
Tank capacity, approx. in l 45

Wheels

Tyre dimensions front 205/65 R17 100 Y XL
Tyre dimensions rear 205/65 R17 100 Y XL
Wheel dimensions and material front 7 J x 17 Leichtmetall
Wheel dimensions and material rear 7 J x 17 Leichtmetall

Range and charging

Electric range, combined in km -
Gross capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (10–80%) h -
Charging time 7,4 kW/16 A, BMW i Wallbox (0–100%) h -

Electric engine

Nominal power in kW (hp) -
Nominal torque (Nm) -

Combined total powertrain

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,730
Max. permissible weight in kg 2,220
Permitted load in kg 565
Permitted axle load front/rear in kg 1,165/1,120
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,545
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82
Nominal power in kW (hp) at 1/min 150 (204)/5,000 - 6,500
Nominal torque (Nm) at 1/min 320/1,500 - 4,000
Compression ratio : 1 11.1

Performance

Acceleration 0–100 km/h in s 7.1
Top speed in km/h 233
Electrical engine top speed in km/h -

Fuel consumption

Fuel consumption, combined in l/100 km 7.2- 6.5
CO2 emissions, combined in g/km 162-146
Energy consumption, combined in kWh/100km (WLTP) -
Tank capacity, approx. in l 45

Wheels

Tyre dimensions front 205/65 R17 100 Y XL
Tyre dimensions rear 205/65 R17 100 Y XL
Wheel dimensions and material front 7 J x 17 Leichtmetall
Wheel dimensions and material rear 7 J x 17 Leichtmetall

Range and charging

Electric range, combined in km -
Gross capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (10–80%) h -
Charging time 7,4 kW/16 A, BMW i Wallbox (0–100%) h -

Electric engine

Nominal power in kW (hp) 14 (19)
Nominal torque (Nm) 55

Combined total powertrain

Combined power kW (PS) 160 (218)
Combined torque Nm 360

Weight

Unladen weight EU in kg 1,650
Max. permissible weight in kg 2,150
Permitted load in kg 575
Permitted axle load front/rear in kg 1,135/1,075
Luggage capacity min. (seats up) in l 540
Luggage capacity max. (seats down) in l 1,600
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Nominal power in kW (hp) at 1/min 110 (150)/3,750 - 4,000
Nominal torque (Nm) at 1/min 360/1,500 - 2,500
Compression ratio : 1 16,5

Performance

Acceleration 0–100 km/h in s 8.9
Top speed in km/h 210
Electrical engine top speed in km/h -

Fuel consumption

Fuel consumption, combined in l/100 km 5.5-4.9
CO2 emissions, combined in g/km 144-129
Energy consumption, combined in kWh/100km (WLTP) -
Tank capacity, approx. in l 45

Wheels

Tyre dimensions front 205/65 R17 100 Y XL
Tyre dimensions rear 205/65 R17 100 Y XL
Wheel dimensions and material front 7 J x 17 Leichtmetall
Wheel dimensions and material rear 7 J x 17 Leichtmetall

Range and charging

Electric range, combined in km -
Gross capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (10–80%) h -
Charging time 7,4 kW/16 A, BMW i Wallbox (0–100%) h -

Electric engine

Nominal power in kW (hp) -
Nominal torque (Nm) -

Combined total powertrain

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,765
Max. permissible weight in kg 2,265
Permitted load in kg 575
Permitted axle load front/rear in kg 1,170/1,155
Luggage capacity min. (seats up) in l 500
Luggage capacity max. (seats down) in l 1,545
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1,995
Stroke/bore in mm 90.0/84.0
Nominal power in kW (hp) at 1/min 145 (197)/4,000
Nominal torque (Nm) at 1/min 400/1,500 - 2,750
Compression ratio : 1 16,5

Performance

Acceleration 0–100 km/h in s 7.4
Top speed in km/h 225
Electrical engine top speed in km/h -

Fuel consumption

Fuel consumption, combined in l/100 km 5.3-4.8
CO2 emissions, combined in g/km 140-125
Energy consumption, combined in kWh/100km (WLTP) -
Tank capacity, approx. in l 45

Wheels

Tyre dimensions front 205/65 R17 100 Y XL
Tyre dimensions rear 205/65 R17 100 Y XL
Wheel dimensions and material front 7 J x 17 Leichtmetall
Wheel dimensions and material rear 7 J x 17 Leichtmetall

Range and charging

Electric range, combined in km -
Gross capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (10–80%) h -
Charging time 7,4 kW/16 A, BMW i Wallbox (0–100%) h -

Electric engine

Nominal power in kW (hp) 14 (19)
Nominal torque (Nm) 55

Combined total powertrain

Combined power kW (PS) 155 (211)
Combined torque Nm 400

Weight

Unladen weight EU in kg 1,930
Max. permissible weight in kg 2,430
Permitted load in kg - (1)
Permitted axle load front/rear in kg - (1)
Luggage capacity min. (seats up) in l 490
Luggage capacity max. (seats down) in l 1,495
Trailer load (unbraked) in kg - (1)
Trailer load 8% (braked) in kg - (1)
Trailer load 12% (braked) in kg 1,700

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm - (1)
Nominal power in kW (hp) at 1/min 100 (136)/4,400 - 6,500
Nominal torque (Nm) at 1/min 230/1,500 - 4,000
Compression ratio : 1 - (1)

Performance

Acceleration 0–100 km/h in s 6.8
Top speed in km/h 190
Electrical engine top speed in km/h 140

Fuel consumption

Fuel consumption, combined in l/100 km 1.1-0.8
CO2 emissions, combined in g/km 24-17
Energy consumption, combined in kWh/100km (WLTP) 18.2-16.4
Tank capacity, approx. in l 47

Wheels

Tyre dimensions front - (1)
Tyre dimensions rear - (1)
Wheel dimensions and material front - (1)
Wheel dimensions and material rear - (1)

Range and charging

Electric range, combined in km 78 - 89
Gross capacity of lithium-ion battery in kWh 16.3
Charging time 3,7 kW/16 A, BMW i Wallbox (10–80%) h less than 3
Charging time 7,4 kW/16 A, BMW i Wallbox (0–100%) h 2:30

Electric engine

Nominal power in kW (hp) 80 (109)
Nominal torque (Nm) 247

Combined total powertrain

Combined power kW (PS) 180 (245)
Combined torque Nm 477

Weight

Unladen weight EU in kg 1,935
Max. permissible weight in kg 2,435
Permitted load in kg - (1)
Permitted axle load front/rear in kg - (1)
Luggage capacity min. (seats up) in l 490
Luggage capacity max. (seats down) in l 1,495
Trailer load (unbraked) in kg - (1)
Trailer load 8% (braked) in kg - (1)
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 3/4
Capacity in ccm 1,499
Stroke/bore in mm - (1)
Nominal power in kW (hp) at 1/min 110 (150)/4,700 - 6,500
Nominal torque (Nm) at 1/min 230/1,500 - 4,400
Compression ratio : 1 - (1)

Performance

Acceleration 0–100 km/h in s 5.7
Top speed in km/h 205
Electrical engine top speed in km/h 140

Fuel consumption

Fuel consumption, combined in l/100 km 1.1-0.8
CO2 emissions, combined in g/km 24-17
Energy consumption, combined in kWh/100km (WLTP) 18.2-16.4
Tank capacity, approx. in l 47

Wheels

Tyre dimensions front - (1)
Tyre dimensions rear - (1)
Wheel dimensions and material front - (1)
Wheel dimensions and material rear - (1)

Range and charging

Electric range, combined in km 78 - 89
Gross capacity of lithium-ion battery in kWh 16.3
Charging time 3,7 kW/16 A, BMW i Wallbox (10–80%) h less than 3
Charging time 7,4 kW/16 A, BMW i Wallbox (0–100%) h 2:30

Electric engine

Nominal power in kW (hp) 130 (177)
Nominal torque (Nm) 247

Combined total powertrain

Combined power kW (PS) 240 (326)
Combined torque Nm 477
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions.

  • BMW X1 xDrive23i (1)
    Fuel consumption in l/100 km (combined): 7.2–6.5
    CO2 emissions in g/km (combined): 165–146

    BMW X1 xDrive30e (2)
    Fuel consumption in l/100 km (combined): 1.1–0.8
    CO2 emissions in g/km (combined): 24–17
    Power consumption in kWh/100 km (combined): 18.2–16.4

    (1) Provisional figures; any missing figures were unavailable at the time of publication

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    (2) At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers. The performance depends on the state of charge of the battery.
