BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Touring.

Read more
THE 5BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA

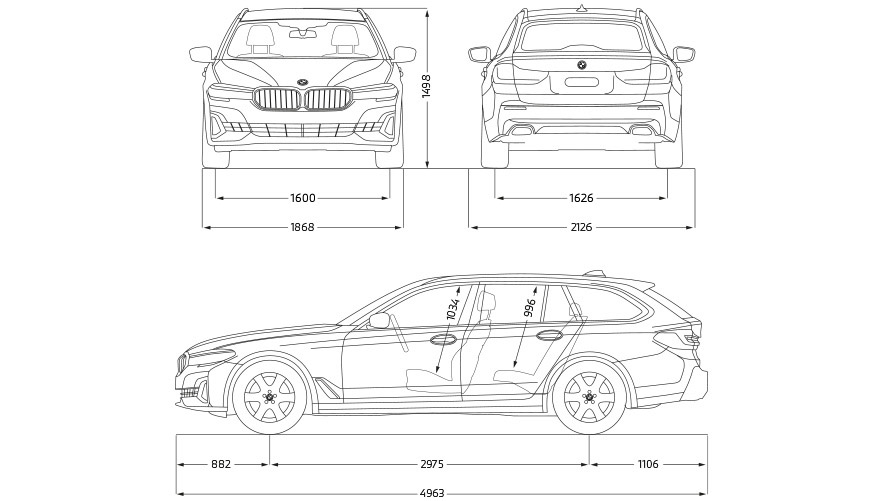

BMW 5 SERIES TOURING: TECHNICAL DATA.

Weight

Unladen weight EU in kg 2,035
Max. permissible weight in kg 2,610
Permitted load in kg 650
Permitted axle load front/rear in kg 1,140/1,550
Luggage capacity min. (seats up or roof down) in l 430
Luggage capacity max. (seats down or roof up) in l 1,560
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 4/4
Capacity in ccm 1.998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 120-135 (163-184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000 - 1,350-3,700
Compression ratio : 1 11.0

Performance

Top speed in km/h 217-225
Acceleration 0–100 km/h in s 6.6-6.1
Top speed electrical in km/h 140

Fuel consumption

Combined in l/100 km 2.3-1.8
CO2 combined emissions in g/km 52-41
Electricity consumption, combined in kWh/100km 20.1-18.5
Tank capacity, approx. in l 46

Wheels

Tyre dimensions front 245/45 R18 100 Y XL
Tyre dimensions rear 245/45 R18 100 Y XL
Wheel dimensions and material front 8 J x 18 inches, light-alloy
Wheel dimensions and material rear 8 J x 18 inches, light-alloy

Range and charging

Electric range in km 53-47
Growth capacity of lithium-ion battery in kWh 12
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.6
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3,6

Electric engine

Electric engine power kW (hp) at 1/min 80 (109)/3,140
Electric Engine torque (Nm) at 1/min 420/100-2,500

Combined system power

Combined power kW (hp) 200-215 (272-292)
Combined torque Nm 420

BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW 530e** Touring:
Fuel consumption in l/100 km (combined): 1.9–1.5
CO2 emissions in g/km (combined): 43–35



Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp



** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

Read more

Fuel consumption and CO2 emissions.

  • BMW 530e Touring:
    Fuel consumption in l/100 km (combined): 1,9–1,5
    CO2 emissions in g/km (combined): 24,8–22,8

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
