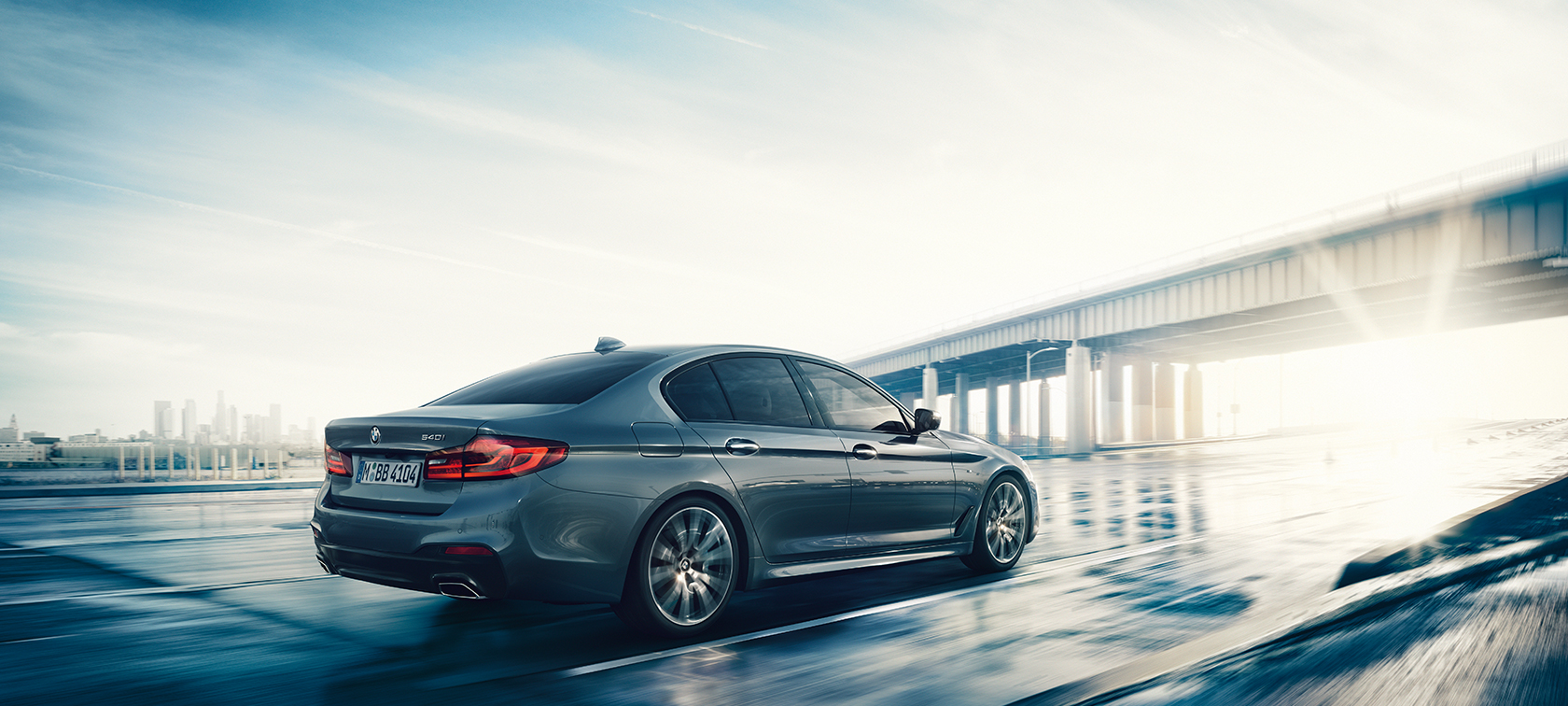

BMW 5 Series Sedan 540i Sedan G30 Bluestone metallic three-quarter rear view

THE 5

THE BMW 5 SERIES SEDAN: ENGINES & TECHNICAL DATA

THE 5THE BMW 5 SERIES SEDAN: ENGINES & TECHNICAL DATA

Discover all the data, specifications and dimensions of the BMW 5 Series Sedan here.

Read more

TECHNICAL DATA.

Weight
Unladen weight EU in kg
1,615
Max. permissible weight in kg
2,210
Permitted load in kg
670
Permitted axle load front/rear in kg
1,045/1,250
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
135 (184)/5,000-6,500
Engine torque (Nm) at 1/min
290/1,350-4,250
Compression ratio : 1
11.0
Performance
Top speed in km/h
235
Acceleration 0–100 km/h in s
7.8
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.0-6.9
Extra-urban in l/100 km
5.3-5.1
Combined in l/100 km
5.9-5.8
CO2 combined emissions in g/km
134-132
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
245/35 R20 95Y XL
Tyre dimensions rear
275/30 R20 97Y XL
Wheel dimensions and material front
8 J x 20 inches, light-alloy
Wheel dimensions and material rear
9 J x 20 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,615
Max. permissible weight in kg
2,220
Permitted load in kg
680
Permitted axle load front/rear in kg
1,065/1,255
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.1
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.3-7.2
Extra-urban in l/100 km
5.2-5.0
Combined in l/100 km
5.9-5.8
CO2 combined emissions in g/km
135-132
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,680
Max. permissible weight in kg
2,280
Permitted load in kg
675
Permitted axle load front/rear in kg
1,100/1,265
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.0
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.9-7.8
Extra-urban in l/100 km
5.5-5.3
Combined in l/100 km
6.3-6.2
CO2 combined emissions in g/km
144-137
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,705
Max. permissible weight in kg
2,310
Permitted load in kg
680
Permitted axle load front/rear in kg
1,130/1,280
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
250 (340)/5,500-6,500
Engine torque (Nm) at 1/min
450/1,500-5,200
Compression ratio : 1
11.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.1
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
9.5-9.3
Extra-urban in l/100 km
5.9-5.8
Combined in l/100 km
7.2-7.1
CO2 combined emissions in g/km
164-161
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,765
Max. permissible weight in kg
2,370
Permitted load in kg
680
Permitted axle load front/rear in kg
1,180/1,290
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
250 (340)/5,500-6,500
Engine torque (Nm) at 1/min
450/1,500-5,200
Compression ratio : 1
11.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.7
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
10.2
Extra-urban in l/100 km
6.3-6.2
Combined in l/100 km
7.8-7.7
CO2 combined emissions in g/km
176-174
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,945
Max. permissible weight in kg
2,480
Permitted load in kg
610
Permitted axle load front/rear in kg
1,250/1,310
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
8/4
Capacity in ccm
4,395
Stroke/bore in mm
88.3/89.0
Engine power in kW (hp) at 1/min
390 (530)/5,500-6,000
Engine torque (Nm) at 1/min
750/1,800-4,600
Compression ratio : 1
10.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
3.8
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
13.0
Extra-urban in l/100 km
7.5
Combined in l/100 km
9.4
CO2 combined emissions in g/km
216
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
245/40 R19 98Y XL
Tyre dimensions rear
275/35 R19 100Y XL
Wheel dimensions and material front
8 J x 19 inches, light-alloy
Wheel dimensions and material rear
9 J x 19 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
Weight
Unladen weight EU in kg
1,655
Max. permissible weight in kg
2,260
Permitted load in kg
680
Permitted axle load front/rear in kg
1,055/1,295
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
110 (150)/4,000
Engine torque (Nm) at 1/min
350/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
220
Acceleration 0–100 km/h in s
8.8
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
5.1-5.0
Extra-urban in l/100 km
4.2-4.1
Combined in l/100 km
4.5-4.4
CO2 combined emissions in g/km
119-116
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,670
Max. permissible weight in kg
2,270
Permitted load in kg
675
Permitted axle load front/rear in kg
1,065/1,295
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
140 (190)/4,000 [148 (201)/4,000*]
Engine torque (Nm) at 1/min
400/1,750-2,500 [430/1,750-2,500*]
Compression ratio : 1
16.5
Performance
Top speed in km/h
235
Acceleration 0–100 km/h in s
7.3
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
5.0
Extra-urban in l/100 km
4.2-4.1
Combined in l/100 km
4.5
CO2 combined emissions in g/km
119-117
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,725
Max. permissible weight in kg
2,330
Permitted load in kg
680
Permitted axle load front/rear in kg
1,115/1,315
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
140 (190)/4,000 [148 (201)/4,000*]
Engine torque (Nm) at 1/min
400/1,750-2,500 [430/1,750-2,500*]
Compression ratio : 1
16.5
Performance
Top speed in km/h
232
Acceleration 0–100 km/h in s
7.3
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
5.4-5.3
Extra-urban in l/100 km
4.5-4.4
Combined in l/100 km
4.8-4.7
CO2 combined emissions in g/km
126-124
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,735
Max. permissible weight in kg
2,355
Permitted load in kg
695
Permitted axle load front/rear in kg
1,135/1,315
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
195 (265)/4,000
Engine torque (Nm) at 1/min
620/2,000-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.7
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
6.5-6.2
Extra-urban in l/100 km
4.5
Combined in l/100 km
5.2-5.1
CO2 combined emissions in g/km
138-134
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 97Y
Tyre dimensions rear
225/55 R17 97Y
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,795
Max. permissible weight in kg
2,410
Permitted load in kg
690
Permitted axle load front/rear in kg
1,185/1,325
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
195 (265)/4,000
Engine torque (Nm) at 1/min
620/2,000-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.4
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.0-6.7
Extra-urban in l/100 km
4.7
Combined in l/100 km
5.6-5.4
CO2 combined emissions in g/km
146-143
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
245/35 R20 95Y XL
Tyre dimensions rear
275/30 R20 97Y XL
Wheel dimensions and material front
8 J x 20 inches, light-alloy
Wheel dimensions and material rear
9 J x 20 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,830
Max. permissible weight in kg
2,450
Permitted load in kg
695
Permitted axle load front/rear in kg
1,210/1,325
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
235 (320)/4,400
Engine torque (Nm) at 1/min
680/1,750-2,250
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.7
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.2-6.8
Extra-urban in l/100 km
4.9-4.8
Combined in l/100 km
5.7-5.6
CO2 combined emissions in g/km
149-147
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
245/35 R20 95Y XL
Tyre dimensions rear
275/30 R20 97Y XL
Wheel dimensions and material front
8 J x 20 inches, light-alloy
Wheel dimensions and material rear
9 J x 20 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,935
Max. permissible weight in kg
2,470
Permitted load in kg
610
Permitted axle load front/rear in kg
1,230/1,325
Luggage capacity min. (seats up or roof down) in l
530
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
294 (400)/4,400
Engine torque (Nm) at 1/min
760/2,000-3,000
Compression ratio : 1
16.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.4
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.6
Extra-urban in l/100 km
5.7-5.6
Combined in l/100 km
6.4-6.3
CO2 combined emissions in g/km
168-166
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
245/40 R19 98Y XL
Tyre dimensions rear
275/35 R19 100Y XL
Wheel dimensions and material front
8 J x 19 inches, light-alloy
Wheel dimensions and material rear
9 J x 19 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium-ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (hp) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (hp)
-
Combined torque Nm
-
