BMW 4 Series Coupé (G22), technical data

THE 4

THE BMW 4 SERIES COUPÉ:
ENGINES & TECHNICAL DATA.

THE 4 THE BMW 4 SERIES COUPÉ: <br>ENGINES & TECHNICAL DATA.

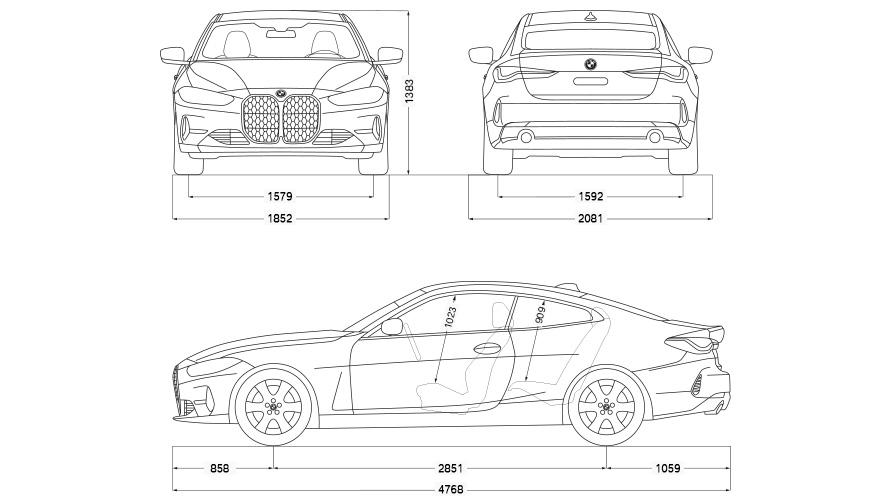

TECHNICAL DATA OF THE BMW 4 SERIES COUPÉ.

Select model

Weight
Unladen weight EU in kg	1,600
Max. permissible weight in kg	2,015
Permitted load in kg	490
Permitted axle load front/rear in kg	970/1,120
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,600
Trailer load 12% (braked) in kg	1,600

Engine
Cylinders/valves	4/4
Capacity in ccm	1,998
Stroke/bore in mm	94.6/82.0
Engine power in kW (hp) at 1/min	135 (184)/5,000-6,500
Engine torque (Nm) at 1/min	300/1,350-4,000
Compression ratio : 1	11.0

Performance
Top speed in km/h	240
Acceleration 0–100 km/h in s	7.5

Fuel consumption
Combined in l/100 km	7.1-6.3
CO2 combined emissions in g/km	162-143
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1,665
Max. permissible weight in kg	2,080
Permitted load in kg	490
Permitted axle load front/rear in kg	1,020/1,130
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	4/4
Capacity in ccm	1,998
Stroke/bore in mm	94.6/82.0
Engine power in kW (hp) at 1/min	135 (184)/5,000-6,500
Engine torque (Nm) at 1/min	300/1,350-4,000
Compression ratio : 1	11.0

Performance
Top speed in km/h	238
Acceleration 0–100 km/h in s	7.8

Fuel consumption
Combined in l/100 km	7.5-6.6
CO2 combined emissions in g/km	169-151
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1,620
Max. permissible weight in kg	2,030
Permitted load in kg	485
Permitted axle load front/rear in kg	980/1,120
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,600
Trailer load 12% (braked) in kg	1,600

Engine
Cylinders/valves	4/4
Capacity in ccm	1,998
Stroke/bore in mm	94.6/82.0
Engine power in kW (hp) at 1/min	180 (245)/4,500-6,500
Engine torque (Nm) at 1/min	400/1,600-4,000
Compression ratio : 1	10.2

Performance
Top speed in km/h	250
Acceleration 0–100 km/h in s	5.9

Fuel consumption
Combined in l/100 km	7.4-6.6
CO2 combined emissions in g/km	167-149
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1,680
Max. permissible weight in kg	2.095
Permitted load in kg	490
Permitted axle load front/rear in kg	1,030/1,130
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	4/4
Capacity in ccm	1,998
Stroke/bore in mm	94.6/82.0
Engine power in kW (hp) at 1/min	180 (245)/4,500-6,500
Engine torque (Nm) at 1/min	400/1,600-4,000
Compression ratio : 1	10.2

Performance
Top speed in km/h	250
Acceleration 0–100 km/h in s	5.7

Fuel consumption
Combined in l/100 km	7.7-6.9
CO2 combined emissions in g/km	176-157
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1,770
Max. permissible weight in kg	2,190
Permitted load in kg	495
Permitted axle load front/rear in kg	1,070/1,180
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	6/4
Capacity in ccm	2,998
Stroke/bore in mm	94.6/82.0
Engine power in kW (hp) at 1/min	275 (374)/5,500-6,500
Engine torque (Nm) at 1/min	500/1,900-5,000
Compression ratio : 1	10.2

Performance
Top speed in km/h	250
Acceleration 0–100 km/h in s	4.8

Fuel consumption
Combined in l/100 km	8.1-7.4
CO2 combined emissions in g/km	184-167
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/45 R18 95 Y XL
Tyre dimensions rear	255/40 R18 99 Y XL
Wheel dimensions and material front	7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear	8.5 J x 18 inches, light-alloy

Weight
Unladen weight EU in kg	1,815
Max. permissible weight in kg	2,245
Permitted load in kg	505
Permitted axle load front/rear in kg	1,110/1,190
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	6/4
Capacity in ccm	2,998
Stroke/bore in mm	94.6/82.0
Engine power in kW (hp) at 1/min	275 (374)/5,500-6,500
Engine torque (Nm) at 1/min	500/1,900-5,000
Compression ratio : 1	10.2

Performance
Top speed in km/h	250
Acceleration 0–100 km/h in s	4.5

Fuel consumption
Combined in l/100 km	8.2-7.4
CO2 combined emissions in g/km	186-170
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/45 R18 95 Y XL
Tyre dimensions rear	255/40 R18 99 Y XL
Wheel dimensions and material front	7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear	8.5 J x 18 inches, light-alloy

Weight
Unladen weight EU in kg	1,680
Max. permissible weight in kg	2,095
Permitted load in kg	490
Permitted axle load front/rear in kg	1,020/1,160
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,600
Trailer load 12% (braked) in kg	1,600

Engine
Cylinders/valves	4/4
Capacity in ccm	1,995
Stroke/bore in mm	90.0/84.0
Engine power in kW (hp) at 1/min	140 (190)/4,000
Engine torque (Nm) at 1/min	400/1,750-2,500
Compression ratio : 1	16.5

Performance
Top speed in km/h	240
Acceleration 0–100 km/h in s	7.1

Fuel consumption
Combined in l/100 km	5.3-4.6
CO2 combined emissions in g/km	139-119
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1,745
Max. permissible weight in kg	2,165
Permitted load in kg	495
Permitted axle load front/rear in kg	1,070/1,170
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	4/4
Capacity in ccm	1,995
Stroke/bore in mm	90.0/84.0
Engine power in kW (hp) at 1/min	140 (190)/4,000
Engine torque (Nm) at 1/min	400/1,750-2,500
Compression ratio : 1	16.5

Performance
Top speed in km/h	238
Acceleration 0–100 km/h in s	7.4

Fuel consumption
Combined in l/100 km	5.6-4.9
CO2 combined emissions in g/km	147-129
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1.855
Max. permissible weight in kg	2.285
Permitted load in kg	505
Permitted axle load front/rear in kg	1,150/1,200
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	6/4
Capacity in ccm	2.993
Stroke/bore in mm	90.0/84.0
Engine power in kW (hp) at 1/min	210 (286)/4,000
Engine torque (Nm) at 1/min	650/1,500-2,500
Compression ratio : 1	16.5

Performance
Top speed in km/h	250
Acceleration 0–100 km/h in s	5.1

Fuel consumption
Combined in l/100 km	5.9-5.2
CO2 combined emissions in g/km	155-137
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/50 R17 98 Y XL
Tyre dimensions rear	225/50 R17 98 Y XL
Wheel dimensions and material front	7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear	7.5 J x 17 inches, light-alloy

Weight
Unladen weight EU in kg	1.905
Max. permissible weight in kg	2,340
Permitted load in kg	510
Permitted axle load front/rear in kg	1,170/1,225
Luggage capacity min. (seats up) in l	440
Luggage capacity max. (seats down) in l	-
Trailer load (unbraked) in kg	750
Trailer load 8% (braked) in kg	1,800
Trailer load 12% (braked) in kg	1,800

Engine
Cylinders/valves	6/4
Capacity in ccm	2.993
Stroke/bore in mm	90.0/84.0
Engine power in kW (hp) at 1/min	250 (340)/4,400
Engine torque (Nm) at 1/min	700/1,750-2,250
Compression ratio : 1	16.5

Performance
Top speed in km/h	250
Acceleration 0–100 km/h in s	4.6

Fuel consumption
Combined in l/100 km	6.3-5.7
CO2 combined emissions in g/km	165-150
Tank capacity, approx. in l	59

Wheels
Tyre dimensions front	225/45 R18 95 Y XL
Tyre dimensions rear	255/40 R18 99 Y XL
Wheel dimensions and material front	7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear	8.5 J x 18 inches, light-alloy

BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Find out more

Fuel consumption and CO2 emissions.

BMW M440i xDrive Coupé:
Fuel consumption in l/100 km (combined): 8.2-7.4
CO2 emissions in g/km (combined): 186-170

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

BMW M440i xDrive Coupé:
Fuel consumption in l/100 km (combined): 8.2-7.5
CO2 emissions in g/km (combined): 186-170

Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

Your browser is not up to date and may not be compatible with our website.

iX

i7

i5

i4

i3

iX3

Shop Online

Digital Services & Apps

Electromobility

Service & Workshop

Technology & Innovation

Parts & Accessories

THE BMW 4 SERIES COUPÉ: ENGINES & TECHNICAL DATA.

TECHNICAL DATA OF THE BMW 4 SERIES COUPÉ.

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

Weight

Engine

Performance

Fuel consumption

Wheels

BMW WHEELS & TYRES.

Fuel consumption and CO2 emissions.

Fuel consumption and CO2 emissions.

Website currently not fully available

THE BMW 4 SERIES COUPÉ:
ENGINES & TECHNICAL DATA.
